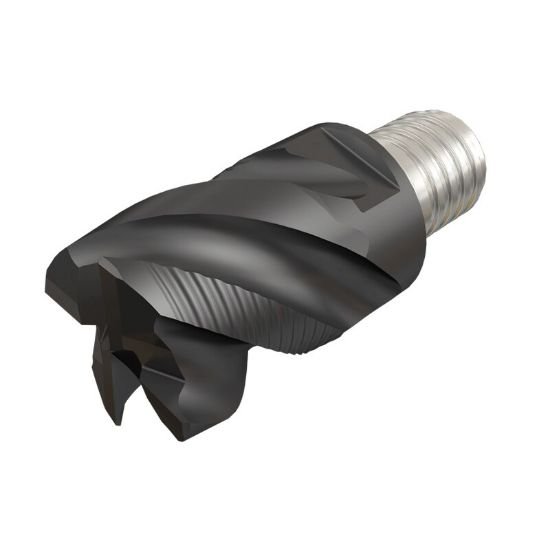

Picture of Iscar MM EFS1.00B86-4T15 IC908 Dia 1 SH 0.9410 LOC 0.8660 OAL2.1500Screw On Head Carbide TiAlN Single End 45.0° Chamfer MULTI-Master

Iscar MM EFS1.00B86-4T15 IC908 Dia 1 SH 0.9410 LOC 0.8660 OAL2.1500Screw On Head Carbide TiAlN Single End 45.0° Chamfer MULTI-Master

Part Number: ISC5622632 1.000 x 0.941 x 0.866 x 2.150
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181669
Vendor: Sussex Tool and Supply
$339.65

Description

ISCAR MM EFS1.00B86-4T15 IC908 Screw On Head Carbide TiAlN 45.0° Chamfer Chamfer Flutes 4 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.1500 54.61MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Length Of Cut 0.8660 22.00MM
Geometry & Angles
Helix Angle 45
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
