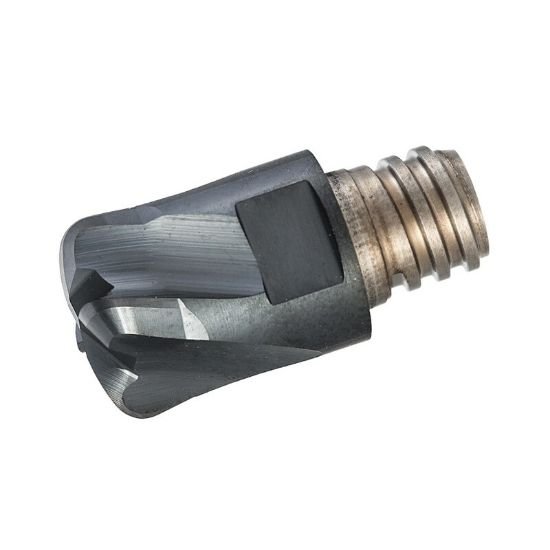

Iscar MM EFF127T4R2.59-4T08 IC903 Dia 1/2 SH T08 LOC 0.0240 OAL0.9630Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.1020 2.59mm Solid-Feed-Mill

Part Number: ISC5606945 0.500 x 0.480 x 0.024 x 0.963
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1183375
$119.94

Description

ISCAR MM EFF127T4R2.59-4T08 IC903 Feed Mill,Replacable Head Carbide TiAlN High Feed 0.1020 2.59MM Flutes 4 Single End Solid-Feed-Mill Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.9630 24.46MM
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.0240 0.61MM
Geometry & Angles
Corner Radius 0.1020 2.59MM
Chamfer Angle 97.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
