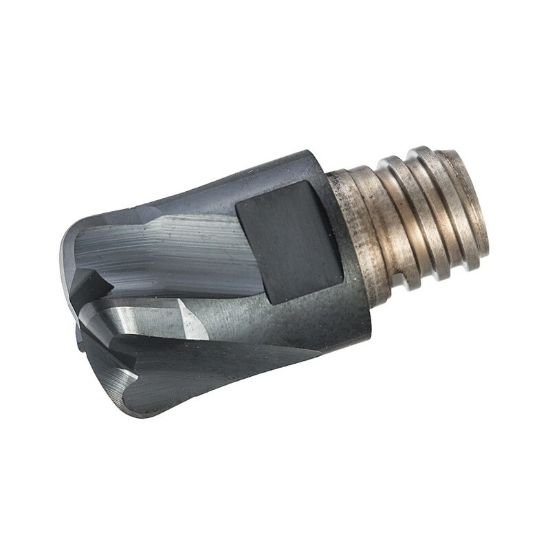

Picture of Iscar MM EFF080T3R1.62-4T05 IC903 Dia 8mm SH T05 LOC 0.0160 OAL0.6730Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.0640 1.63mm Solid-Feed-Mill

Iscar MM EFF080T3R1.62-4T05 IC903 Dia 8mm SH T05 LOC 0.0160 OAL0.6730Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.0640 1.63mm Solid-Feed-Mill

Part Number: ISC5606815 0.315 x 0.295 x 0.016 x 0.673

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1180700
Vendor: Sussex Tool and Supply
$91.20
ISCAR MM EFF080T3R1.62-4T05 IC903 Feed Mill,Replacable Head Carbide TiAlN High Feed 0.0640 1.63MM Flutes 4 Single End Solid-Feed-Mill Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size T05
Overall Length 0.6730 17.09MM
Coolant Thru Non Coolant
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.0160 0.41MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Corner Radius 0.0640 1.63MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Chamfer Angle 97.0°
