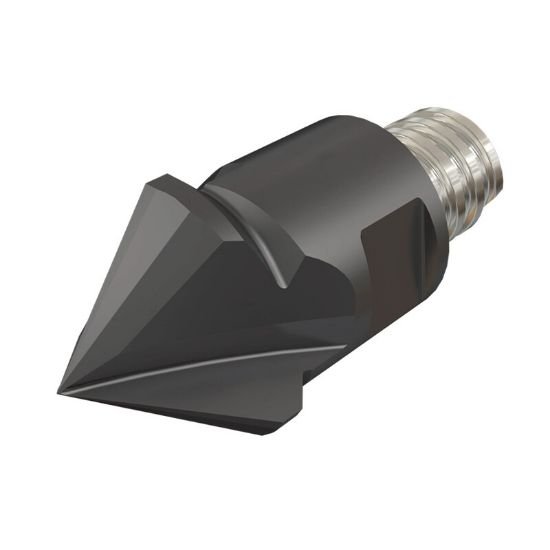

Picture of Iscar MM EDF074-090-58-3T04 IC908 Dia 0.291 SH T04 OAL0.6732Chamfer Mill,Replacable Head Carbide TiAlN Single End Cham Mill MULTI-Master

Iscar MM EDF074-090-58-3T04 IC908 Dia 0.291 SH T04 OAL0.6732Chamfer Mill,Replacable Head Carbide TiAlN Single End Cham Mill MULTI-Master

Part Number: ISC5669258
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1180567
Vendor: Sussex Tool and Supply
$86.38

Description

ISCAR MM EDF074-090-58-3T04 IC908 Chamfer Mill,Replacable Head Carbide TiAlN Cham Mill Flutes 3 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Chamfer
Cutter Style Screw On Double Angle Chamfer
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.6732 17.10MM
Flutes/Inserts 3
Tool Dia 0.2910 7.39MM
Geometry & Angles
Chamfer Angle 45.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
