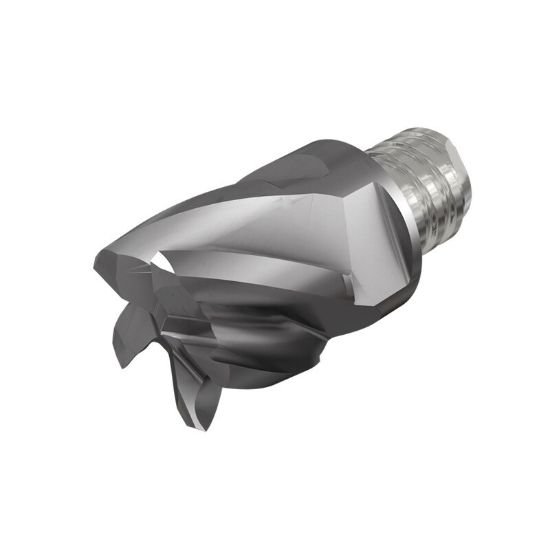

Picture of Iscar MM EC.625H47C24-5T10CF IC308 Dia 5/8 SH T10 LOC 0.4920 OAL1.2730End Mill,Replacable Head Standard Flute Standard Helix Carbide TiCN Single End 45.0° Chamfer MULTI-Master

Iscar MM EC.625H47C24-5T10CF IC308 Dia 5/8 SH T10 LOC 0.4920 OAL1.2730End Mill,Replacable Head Standard Flute Standard Helix Carbide TiCN Single End 45.0° Chamfer MULTI-Master

Part Number: ISC5623389 0.625 x 0.602 x 0.492 x 1.273

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189488
Vendor: Sussex Tool and Supply
$0.00
ISCAR MM EC.625H47C24-5T10CF IC308 Standard Helix End Mill,Replacable Head Carbide TiCN 45.0° Chamfer Chamfer Standard Flute Flutes 5 Single End MULTI-MASTER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TICN
Mach Side Connection Size T10
Overall Length 1.2730 32.33MM
Coolant Thru Non Coolant
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.4920 12.50MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Chamfer Angle 90.0°
