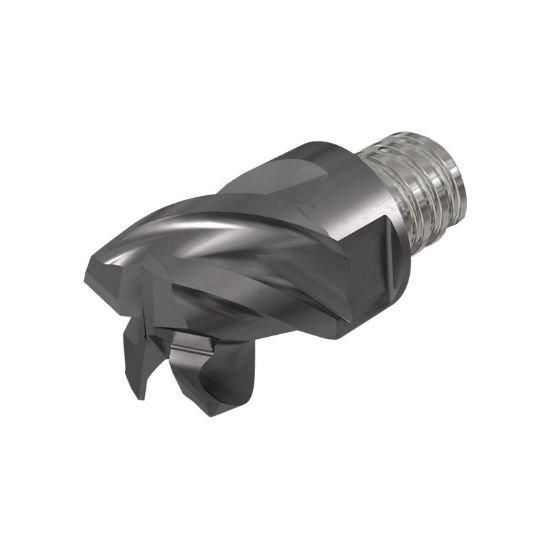

Picture of Iscar MM EC.625H47C24-4T10CF IC908 Dia 5/8 SH T10 LOC 0.4880 OAL1.2730End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End 45.0° Chamfer MULTI-Master

Iscar MM EC.625H47C24-4T10CF IC908 Dia 5/8 SH T10 LOC 0.4880 OAL1.2730End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End 45.0° Chamfer MULTI-Master

Part Number: ISC5667818

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189487
Vendor: Sussex Tool and Supply
$247.30
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Cutter Type End Mill Screw On Head
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 1.2730 32.33MM
Machine Side (Toolpost) T10
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 0.4880 12.40MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Screw On
Flutes Or Inserts 4
Shipping State TEXAS
Family Group Multi-Master
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size T10
Coating TiAlN
Tool Diameter 0.6250 15.88MM - 5/8
Coolant Thru Non Coolant
Chamfer Angle 90.0°
Helix Angle 47°
Made In USA No
