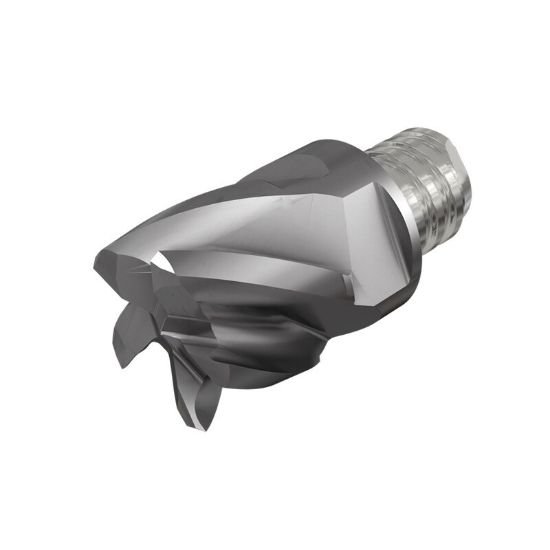

Picture of Iscar MM EC.375H27C16-5T06CF IC308 Dia 3/8 SH T06 LOC 0.2870 OAL0.7720End Mill,Replacable Head Standard Flute Standard Helix Carbide TiCN Single End 45.0° Chamfer MULTI-Master

Iscar MM EC.375H27C16-5T06CF IC308 Dia 3/8 SH T06 LOC 0.2870 OAL0.7720End Mill,Replacable Head Standard Flute Standard Helix Carbide TiCN Single End 45.0° Chamfer MULTI-Master

Part Number: ISC5623387 0.375 x 0.364 x 0.287 x 0.772
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1188640
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM EC.375H27C16-5T06CF IC308 Standard Helix End Mill,Replacable Head Carbide TiCN 45.0° Chamfer Chamfer Standard Flute Flutes 5 Single End MULTI-MASTER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 0.7720 19.61MM
Flutes/Inserts 5
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.2870 7.29MM
Geometry & Angles
Helix Angle 38
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
