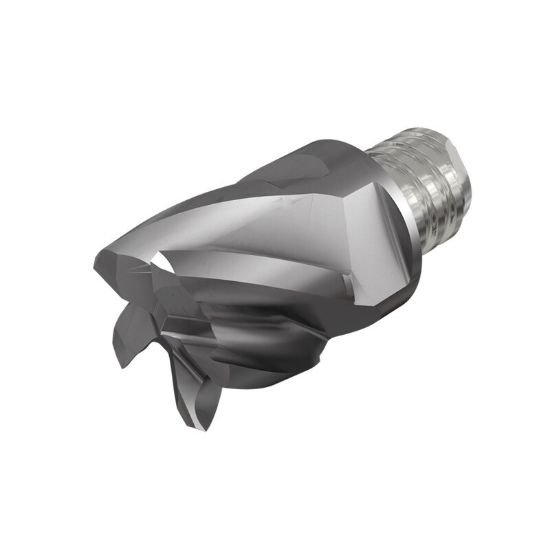

Picture of Iscar MM EC.312H20C12-5T05CF IC308 Dia 5/16 SH T05 LOC 0.2100 OAL0.6730End Mill,Replacable Head Standard Flute Standard Helix Carbide TiCN Single End 45.0° Chamfer MULTI-Master

Iscar MM EC.312H20C12-5T05CF IC308 Dia 5/16 SH T05 LOC 0.2100 OAL0.6730End Mill,Replacable Head Standard Flute Standard Helix Carbide TiCN Single End 45.0° Chamfer MULTI-Master

Part Number: ISC5623386

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1180654
Vendor: Sussex Tool and Supply
$0.00
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.3125 7.93MM - 5/16
Cutter Type End Mill Screw On Head
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 0.6730 17.09MM
Machine Side (Toolpost) T05
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 0.2100 5.33MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Screw On
Flutes Or Inserts 5
Shipping State TEXAS
Family Group Multi-Master
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size T05
Coating TICN
Tool Diameter 0.3125 7.94MM - 5/16
Coolant Thru Non Coolant
Chamfer Angle 90.0°
Helix Angle 38°
Made In USA No
