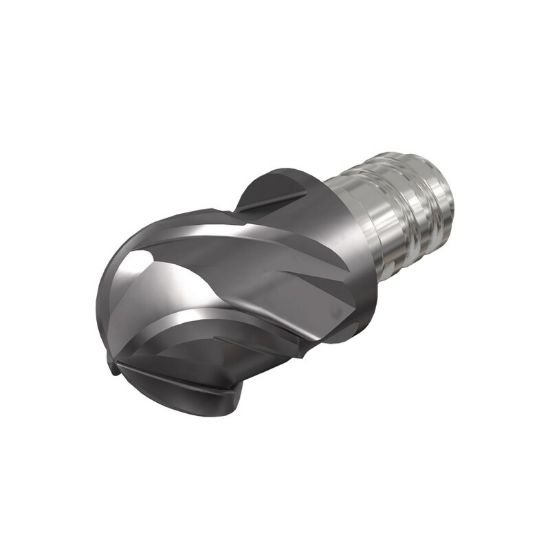

Iscar MM EBC.625B47-4T10CF IC903 Dia 5/8 SH T10 LOC 0.4800 OAL1.2630End Mill,Copy Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master

Part Number: ISC3326625 0.625 x 0.602 x 0.480 x 1.263

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189505
$242.00
ISCAR MM EBC.625B47-4T10CF IC903 High Helix End Mill,Copy Mill,Replacable Head Carbide TiAlN Ball Nose Ball Standard Flute Flutes 4 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size T10
Overall Length 1.2630 32.08MM
Coolant Thru Non Coolant
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.4800 12.19MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
