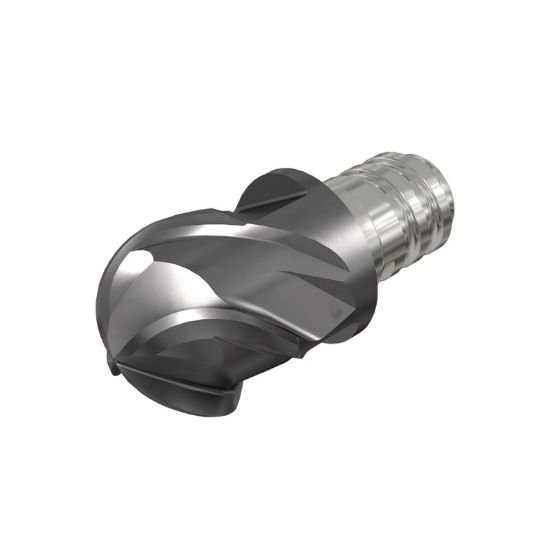

Iscar MM EBC.375B27-4T06CF IC903 Dia 3/8 SH T06 LOC 0.2910 OAL0.7720End Mill,Copy Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master
Iscar MM EBC.375B27-4T06CF IC903 Dia 3/8 SH T06 LOC 0.2910 OAL0.7720End Mill,Copy Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master
Part Number: ISC3326623 0.375 x 0.360 x 0.291 x 0.772
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
ISCAR
SKU:
1188649
Vendor:
Sussex Tool and Supply
$125.00
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
ISCAR MM EBC.375B27-4T06CF IC903 High Helix End Mill,Copy Mill,Replacable Head Carbide TiAlN Ball Nose Ball Standard Flute Flutes 4 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name
Attribute value
Shipping State
TEXAS
Made In USA
NO
Cutter Type
End Mill Screw On Head
Tool Material
Carbide
Cutting Edge Mat
Carbide
Machine Side Connection Type
Screw On
Cut Rating
<53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating
TiAlN
Mach Side Connection Size
T06
Overall Length
0.7720 19.61MM
Coolant Thru
Non Coolant
Flutes/Inserts
4
Tool Dia
0.3750 9.53MM - 3/8
Length Type
STANDARD
Performance Rating
High Performance
Length Of Cut
0.2910 7.39MM
End Of Tool Shape
Ball Nose
Cutter Style
Carbide Ball Finisher
Single/Double End
Single End
Inch/Metric
Inch
Helix Angle
45
Center Cutting
Center Cutting
