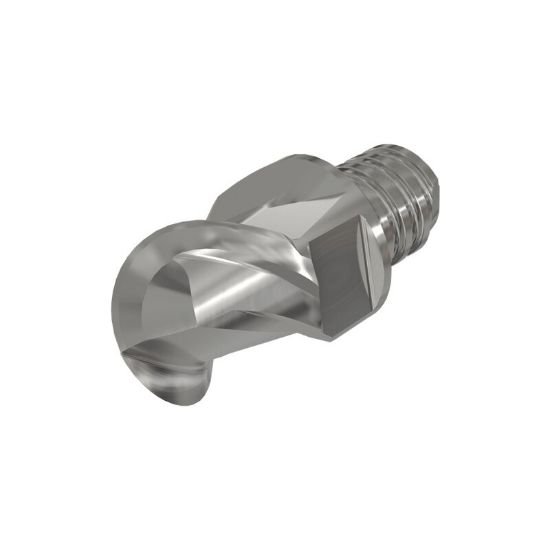

Picture of Iscar MM EBA250B22-2T15 IC08 Dia 25mm SH 0.9410 LOC 0.8660 OAL2.1500End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall MULTI-Master

Iscar MM EBA250B22-2T15 IC08 Dia 25mm SH 0.9410 LOC 0.8660 OAL2.1500End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall MULTI-Master

Part Number: ISC5622624 0.984 x 0.941 x 0.866 x 2.150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181544
Vendor: Sussex Tool and Supply
$171.04
ISCAR MM EBA250B22-2T15 IC08 High Helix End Mill,Replacable Head Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.9410 23.90MM
Overall Length 2.1500 54.61MM
Coolant Thru Non Coolant
Flutes/Inserts 2
Tool Dia 0.9844 25.00MM - 63/64
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
