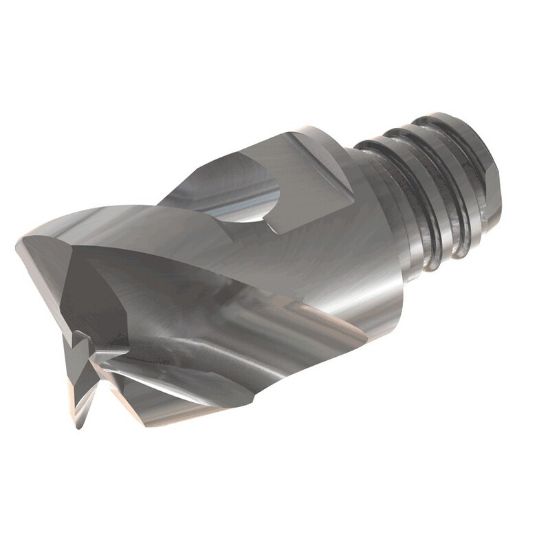

ISCAR MM EA.750B47R125-3T12 IC08 DIA 3/4 SH T12 LOC 0.4700 OAL1.5430Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.1250 3.18MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622743
Delivery date: 3-5 days
$169.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#25, Material#20
Additional Key Information 1 Screw On Head
Performance Rating High Performance
Application Side Milling, Profile Millling, Slot Milling
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Additional Key Information 2 Corner Radius
Package Size 1
Sold by Pieces 1
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Corner Radius 0.1250 3.18MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Chamfer Angle 90.0°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side T12
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.750 x 0.726 x 0.470 x 1.543
Machine Side Connection Size T12
Helix Angle 45°
Length Type Standard
End Of Tool Shape Corner Radius
Overall Len 1.5430 39.19MM
Length Of Cut 0.4700 11.94MM
Single/Double End Single End
Tool Material Carbide
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
