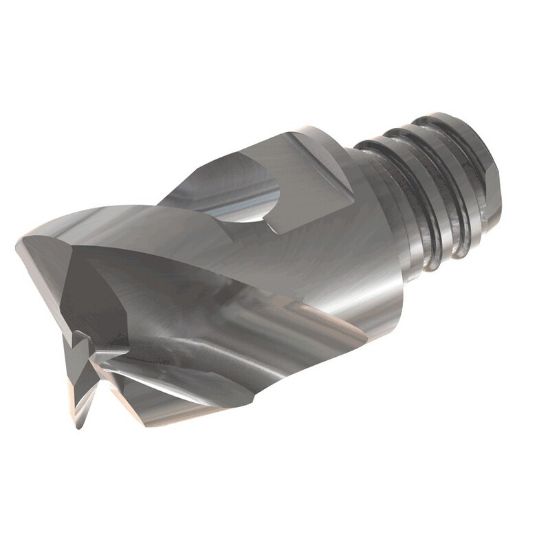

ISCAR MM EA.625B39R062-3T10 IC08 DIA 5/8 SH T10 LOC 0.3906 OAL1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0620 1.57MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622738
Delivery date: 3-5 days
$138.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 High Helix
Application Slot Milling, Profile Millling, Side Milling
Additional Key Information 2 Corner Radius
Package Size 1
Sold by Pieces 1
Shipping State Texas
Material # Material#42, Material#25, Material#20
Additional Key Information 1 Screw On Head
Performance Rating High Performance
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side T10
Length Of Cut 0.3906 9.92MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.625 x 0.602 x 0.391 x 1.273
Machine Side Connection Size T10
Corner Radius 0.0620 1.57MM
Length Type Standard
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Chamfer Angle 90.0°
Overall Len 1.2730 32.33MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
