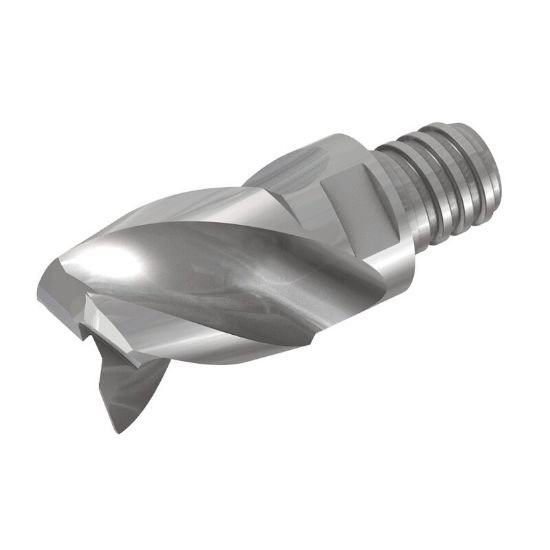

Picture of Iscar MM EA250H19R3.0-3T15 IC08 Dia 25mm SH 0.9410 LOC 0.7480 OAL2.1500Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1180 3.00mm MULTI-Master

Iscar MM EA250H19R3.0-3T15 IC08 Dia 25mm SH 0.9410 LOC 0.7480 OAL2.1500Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1180 3.00mm MULTI-Master

Part Number: ISC5622622 0.984 x 0.941 x 0.748 x 2.150
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$204.39
SKU: 1181543

Description

ISCAR MM EA250H19R3.0-3T15 IC08 Standard Helix Screw On Head Carbide Uncoated Corner Radius 0.1180 3.00MM Standard Flute Flutes 3 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.1500 54.61MM
Flutes/Inserts 3
Tool Dia 0.9844 25.00MM - 63/64
Length Of Cut 0.7480 19.00MM
Geometry & Angles
Corner Radius 0.1180 3.00MM
Helix Angle 40
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
