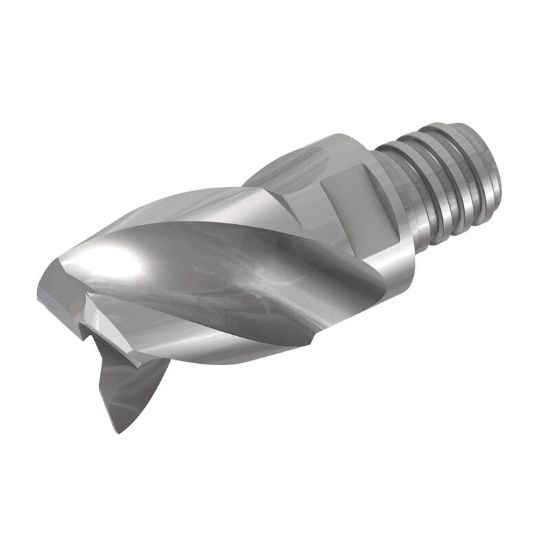

ISCAR MM EA250H19R0.5-3T15 IC08 DIA 25MM SH 0.9410 LOC 0.7480 OAL2.1500Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622620
Delivery date: 3-5 days
$203.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#25, Material#42
Additional Key Information 3 Standard Flute
Application Side Milling, Profile Milling, Slot Milling
Additional Key Information 2 Corner Radius
Package Size 1
Additional Key Information 1 Screw On Head
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Sold by Pieces 1
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Chamfer Angle 90.0°
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.9844 25.00MM - 63/64
Machine Side T15
Helix Angle 40°
Dimension Description 0.984 x 0.941 x 0.748 x 2.150
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Length Type Standard
Machine Side Connection Size 0.9410 23.90MM
Overall Len 2.1500 54.61MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Length Of Cut 0.7480 19.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
