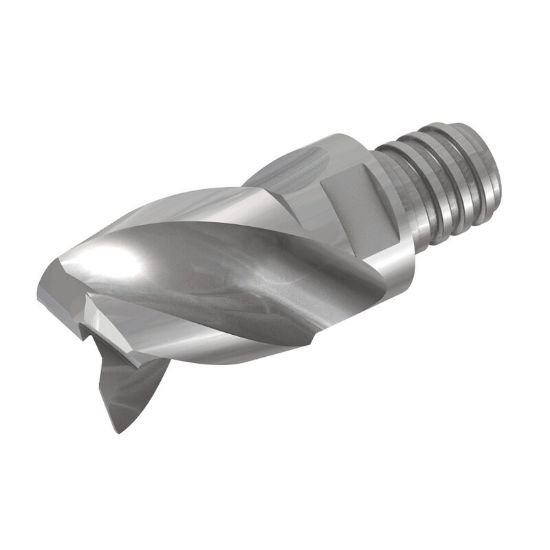

Picture of Iscar MM EA200H20R0.5CF-3T12 IC08 Dia 20mm SH T12 LOC 0.7870 OAL1.8820Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm MULTI-Master

Iscar MM EA200H20R0.5CF-3T12 IC08 Dia 20mm SH T12 LOC 0.7870 OAL1.8820Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm MULTI-Master

Part Number: ISC5668964 0.787 x 0.726 x 0.787 x 1.882

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181375
Vendor: Sussex Tool and Supply
$161.39
ISCAR MM EA200H20R0.5CF-3T12 IC08 Standard Helix Screw On Head Carbide Uncoated Corner Radius 0.0200 0.51MM Standard Flute Flutes 3 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size T12
Overall Length 1.8820 47.80MM
Coolant Thru Non Coolant
Flutes/Inserts 3
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7870 19.99MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 40
Center Cutting Center Cutting
Chamfer Angle 90.0°
