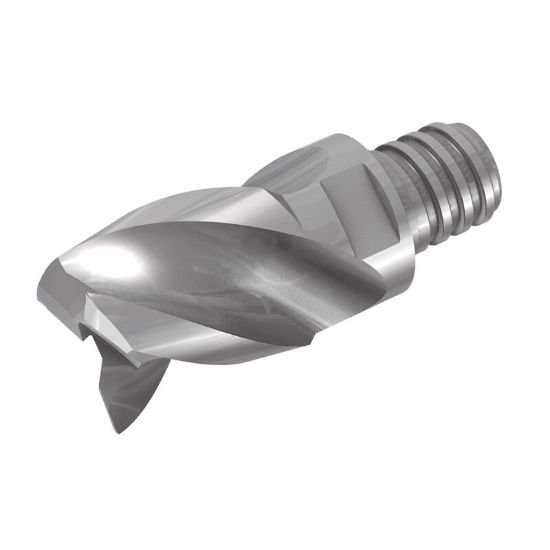

Picture of Iscar MM EA120H12R0.2CF-3T08 IC08 Dia 12mm SH T08 LOC 0.4720 OAL1.2180Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0080 0.20mm MULTI-Master

Iscar MM EA120H12R0.2CF-3T08 IC08 Dia 12mm SH T08 LOC 0.4720 OAL1.2180Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0080 0.20mm MULTI-Master

Part Number: ISC5623051 0.472 x 0.461 x 0.472 x 1.218
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$101.31
SKU: 1180915

Description

ISCAR MM EA120H12R0.2CF-3T08 IC08 Standard Helix Screw On Head Carbide Uncoated Corner Radius 0.0080 0.20MM Standard Flute Flutes 3 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.2180 30.94MM
Flutes/Inserts 3
Tool Dia 0.4724 12.00MM
Length Of Cut 0.4724 12.00MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Helix Angle 40
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
