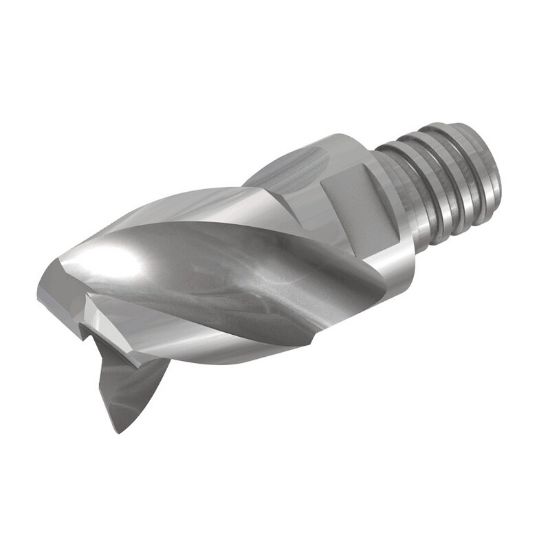

ISCAR MM EA080H08R0CF-4T05 IC08 DIA 8MM SH T05 LOC 0.3150 OAL0.8700End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667105
Delivery date: 3-5 days
$83.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill, Screw On Head
Additional Key Information 3 Standard Flute
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Sharp
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size T05
Length Of Cut 0.3150 8.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.315 x 0.303 x 0.315 x 0.870
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 4
Helix Angle 40°
Chamfer Angle 90.0°
End Of Tool Shape Square
Overall Len 0.8700 22.10MM
Machine Side T05
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
