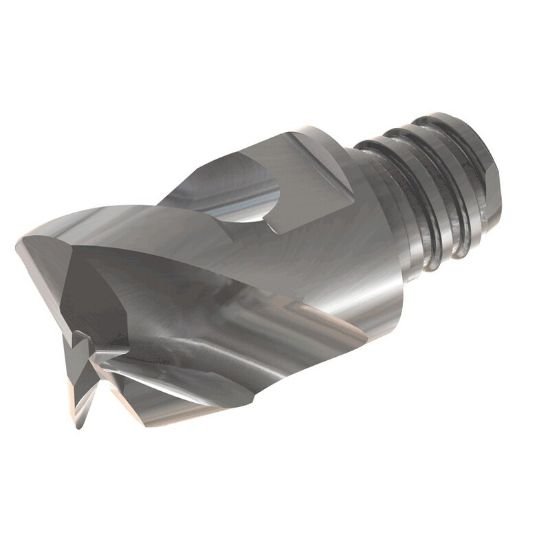

Picture of Iscar MM EA080B05R0.5-2T05 IC08 Dia 8mm SH T05 LOC 0.1970 OAL0.6730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm MULTI-Master

Iscar MM EA080B05R0.5-2T05 IC08 Dia 8mm SH T05 LOC 0.1970 OAL0.6730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm MULTI-Master

Part Number: ISC5691345 0.315 x 0.303 x 0.197 x 0.673
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$54.29
SKU: 1180704

Description

ISCAR MM EA080B05R0.5-2T05 IC08 High Helix Screw On Head Carbide Uncoated Corner Radius 0.0200 0.51MM Standard Flute Flutes 2 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 0.6730 17.09MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Of Cut 0.1970 5.00MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle 45
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
