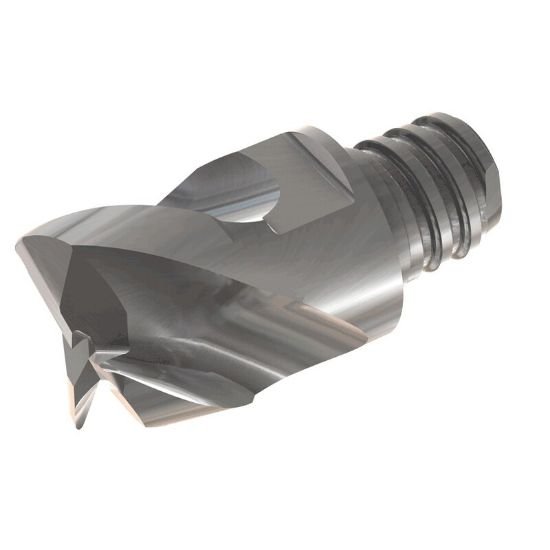

Picture of Iscar MM EA.625B39R125-3T10 IC08 Dia 5/8 SH T10 LOC 0.3906 OAL1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.1250 3.18mm MULTI-Master

Iscar MM EA.625B39R125-3T10 IC08 Dia 5/8 SH T10 LOC 0.3906 OAL1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.1250 3.18mm MULTI-Master

Part Number: ISC5622740 0.625 x 0.602 x 0.391 x 1.273

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189514
Vendor: Sussex Tool and Supply
$117.24
ISCAR MM EA.625B39R125-3T10 IC08 High Helix Screw On Head Carbide Uncoated Corner Radius 0.1250 3.18MM Standard Flute Flutes 3 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size T10
Overall Length 1.2730 32.33MM
Coolant Thru Non Coolant
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3906 9.92MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1250 3.18MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
Chamfer Angle 90.0°
