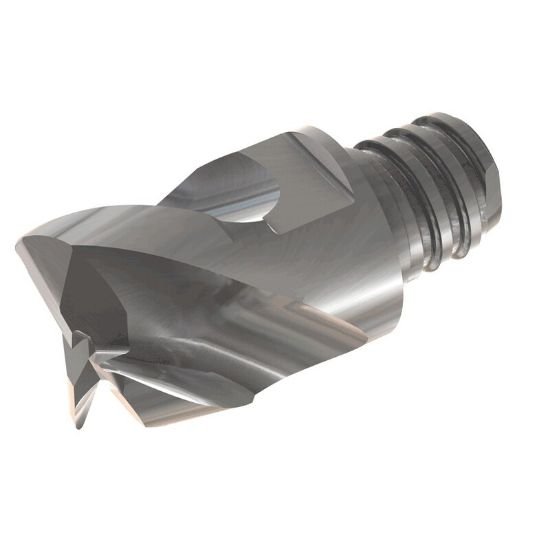

Picture of Iscar MM EA.625B39R094-3T10 IC08 Dia 5/8 SH T10 LOC 0.3906 OAL1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0940 2.39mm MULTI-Master

Iscar MM EA.625B39R094-3T10 IC08 Dia 5/8 SH T10 LOC 0.3906 OAL1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0940 2.39mm MULTI-Master

Part Number: ISC5622739 0.625 x 0.602 x 0.391 x 1.273
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1189513

Description

ISCAR MM EA.625B39R094-3T10 IC08 High Helix Screw On Head Carbide Uncoated Corner Radius 0.0940 2.39MM Standard Flute Flutes 3 Single End MULTI-MASTER Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.2730 32.33MM
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.3906 9.92MM
Geometry & Angles
Corner Radius 0.0940 2.39MM
Helix Angle 45
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
