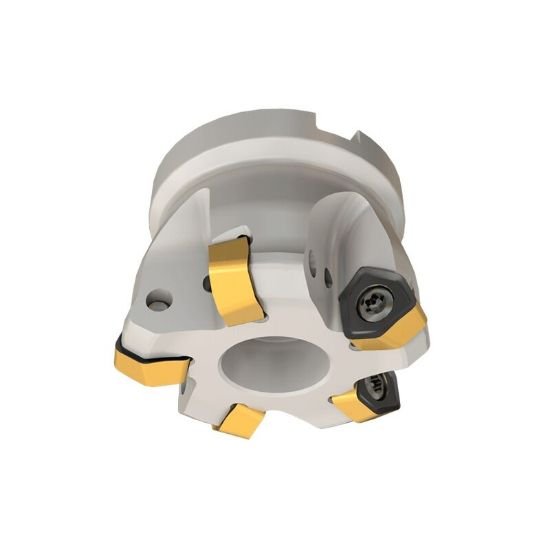

Picture of Iscar MF FWX D5.00-09-1.50-08 Milling Cutter Feed Mill 5.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

Iscar MF FWX D5.00-09-1.50-08 Milling Cutter Feed Mill 5.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

Part Number: ISC3106032 ISO: MF FWX D5.00-09-1.50-08 ANSI:MF FWX D5.00-09-1.50-08
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012410
Vendor: Sussex Tool and Supply
$1,488.00

Description

ISCAR 3106032 Trigon Feed Mill SHELL1.5000 Negative 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7002495
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 9
Tool Dia 5.0000 127.00MM
Insert Size Ic 8
Performance & Capacity
Cut Dia Min 4.3980 111.71MM
Depth Of Cut Max 0.0710
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
