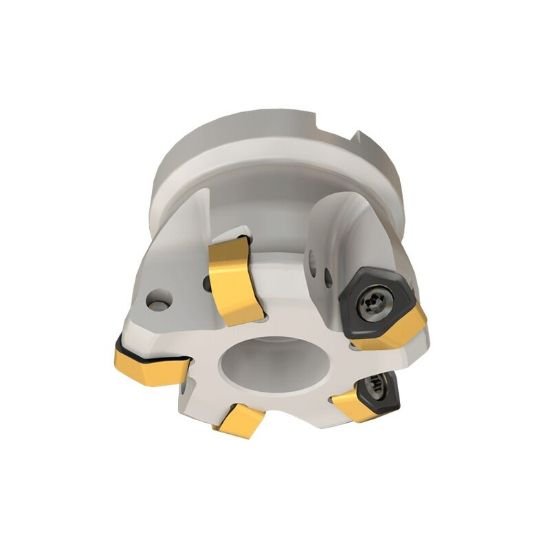

Picture of Iscar MF FWX D2.50-08-1.00-05 Milling Cutter Feed Mill 2.500 Diameter Face Mill 1.000 1.625 OAL 8 Flute

Iscar MF FWX D2.50-08-1.00-05 Milling Cutter Feed Mill 2.500 Diameter Face Mill 1.000 1.625 OAL 8 Flute

Part Number: ISC3106236 ISO: MF FWX D2.50-08-1.00-05 ANSI:MF FWX D2.50-08-1.00-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012438
Vendor: Sussex Tool and Supply
$951.36

Description

ISCAR 3106236 Trigon Feed Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 1.6250 41.28MM
Flutes/Inserts 8
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 2.1270 54.03MM
Depth Of Cut Max 0.0790
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
