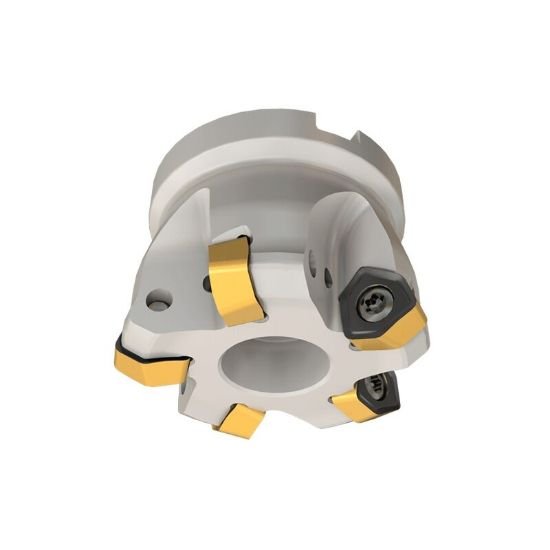

Picture of Iscar MF FWX D2.00-05-0.75-07 Milling Cutter Feed Mill 2.000 Diameter Face Mill 0.750 1.500 OAL 5 Flute

Iscar MF FWX D2.00-05-0.75-07 Milling Cutter Feed Mill 2.000 Diameter Face Mill 0.750 1.500 OAL 5 Flute

Part Number: ISC3106851 ISO: MF FWX D2.00-05-0.75-07 ANSI:MF FWX D2.00-05-0.75-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012569
Vendor: Sussex Tool and Supply
$644.00
ISCAR 3106851 Trigon Feed Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5000 38.10MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 7
Cut Dia Min 1.5200 38.61MM
Coolant Type Through Hole
Depth Of Cut Max 0.1060
Cut Dia Max 2.0000 50.80MM
Insert Screw 7000000
