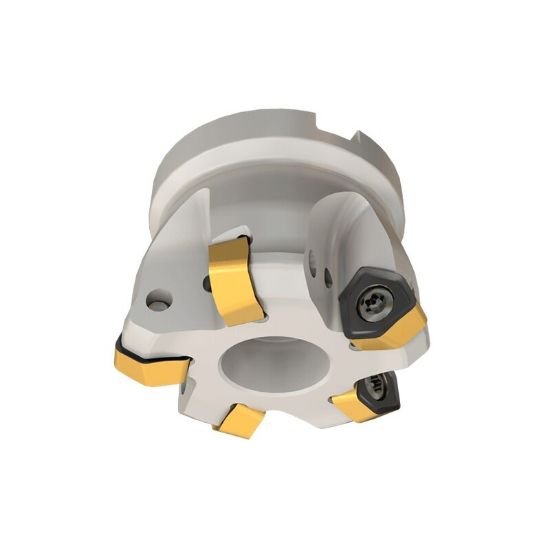

Picture of Iscar MF FWX D1.50-05-0.50-05 Milling Cutter Feed Mill 1.500 Diameter Face Mill 0.500 1.400 OAL 5 Flute

Iscar MF FWX D1.50-05-0.50-05 Milling Cutter Feed Mill 1.500 Diameter Face Mill 0.500 1.400 OAL 5 Flute

Part Number: ISC3106234 ISO: MF FWX D1.50-05-0.50-05 ANSI:MF FWX D1.50-05-0.50-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012436
Vendor: Sussex Tool and Supply
$641.28

Description

ISCAR 3106234 Trigon Feed Mill SHELL0.5000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 1.4000 35.56MM
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 1.1280 28.65MM
Depth Of Cut Max 0.0790
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
