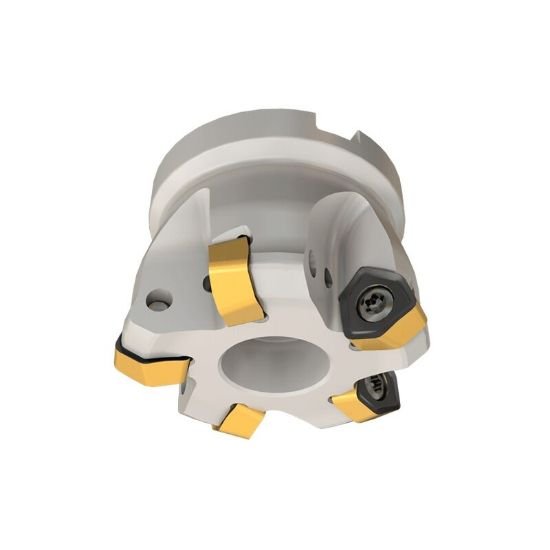

Picture of Iscar MF FWX D1.50-04-0.50-07 Milling Cutter Feed Mill 1.500 Diameter Face Mill 0.500 1.400 OAL 4 Flute

Iscar MF FWX D1.50-04-0.50-07 Milling Cutter Feed Mill 1.500 Diameter Face Mill 0.500 1.400 OAL 4 Flute

Part Number: ISC3106850 ISO: MF FWX D1.50-04-0.50-07 ANSI:MF FWX D1.50-04-0.50-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012568
Vendor: Sussex Tool and Supply
$562.00
ISCAR 3106850 Trigon Feed Mill SHELL0.5000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.5000 12.70MM
Overall Length 1.4000 35.56MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 7
Cut Dia Min 1.0200 25.91MM
Coolant Type Through Hole
Depth Of Cut Max 0.1060
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Screw 7000000
