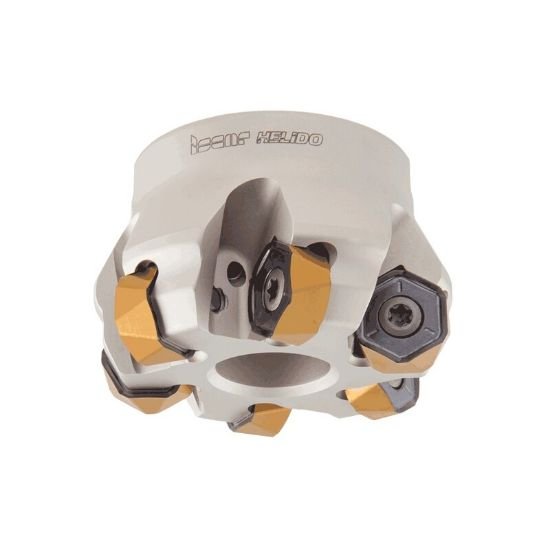

Picture of Iscar MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

Iscar MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

Part Number: ISC3107210 ISO: MF FHX D4.00-09-1.50-R06 ANSI:MF FHX D4.00-09-1.50-R06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012623
Vendor: Sussex Tool and Supply
$1,401.60

Description

ISCAR 3107210 Square Feed Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000229
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 9
Tool Dia 4.0000 101.60MM
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 3.6200 91.95MM
Depth Of Cut Max 0.1180
Cut Dia Max 4.0900 103.89MM
Materials & Finish
Tool Material Steel
