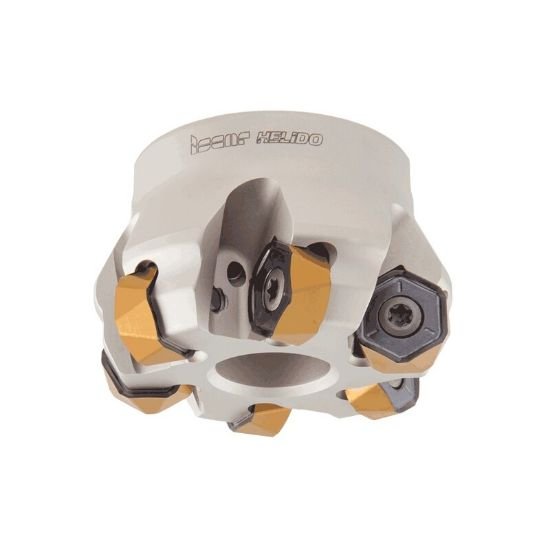

Picture of Iscar MF FHX D2.50-06-1.00-R06 Milling Cutter Feed Mill 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

Iscar MF FHX D2.50-06-1.00-R06 Milling Cutter Feed Mill 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

Part Number: ISC3107208 ISO: MF FHX D2.50-06-1.00-R06 ANSI:MF FHX D2.50-06-1.00-R06
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012621
Vendor: Sussex Tool and Supply
$862.08

Description

ISCAR 3107208 Square Feed Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000229
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 2.1200 53.85MM
Depth Of Cut Max 0.1180
Cut Dia Max 2.5900 65.79MM
Materials & Finish
Tool Material Steel
