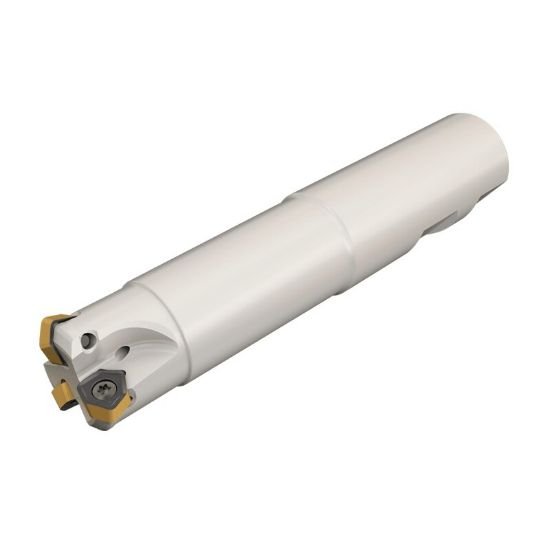

Picture of Iscar MF EWXD1.50-4-3.5W1.25-07 Milling Cutter Feed Mill 1.020 Diameter Weldon 1.250 6.000 OAL 4 Flute

Iscar MF EWXD1.50-4-3.5W1.25-07 Milling Cutter Feed Mill 1.020 Diameter Weldon 1.250 6.000 OAL 4 Flute

Part Number: ISC3107066 ISO: MF EWXD1.50-4-3.5W1.25-07 ANSI:MF EWXD1.50-4-3.5W1.25-07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012596
Vendor: Sussex Tool and Supply
$581.76

Description

ISCAR 3107066 Trigon Feed Mill End Mill Weldon 1.2500 Negative 1.0200 25.91MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000229
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.0200 25.91MM
Insert Size Ic 7
Performance & Capacity
Cut Dia Min 1.0200 25.91MM
Depth Of Cut Max 0.0400
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 2.20°
Materials & Finish
Tool Material Steel
