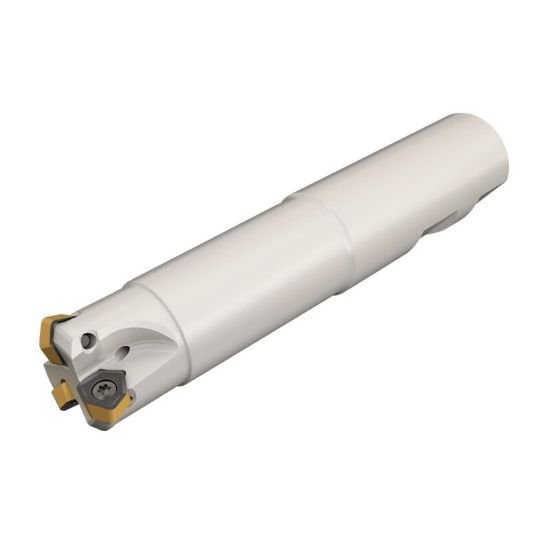

Picture of Iscar MF EWXD1.25-4-3.0W1.25-05 Milling Cutter Feed Mill 1.250 Diameter Weldon 1.250 5.500 OAL 4 Flute

Iscar MF EWXD1.25-4-3.0W1.25-05 Milling Cutter Feed Mill 1.250 Diameter Weldon 1.250 5.500 OAL 4 Flute

Part Number: ISC3106347 ISO: MF EWXD1.25-4-3.0W1.25-05 ANSI:MF EWXD1.25-4-3.0W1.25-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012451
Vendor: Sussex Tool and Supply
$504.00

Description

ISCAR 3106347 Trigon Feed Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 5.5000 139.70MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 0.8800 22.35MM
Depth Of Cut Max 0.0590
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 1.90°
Materials & Finish
Tool Material Steel
