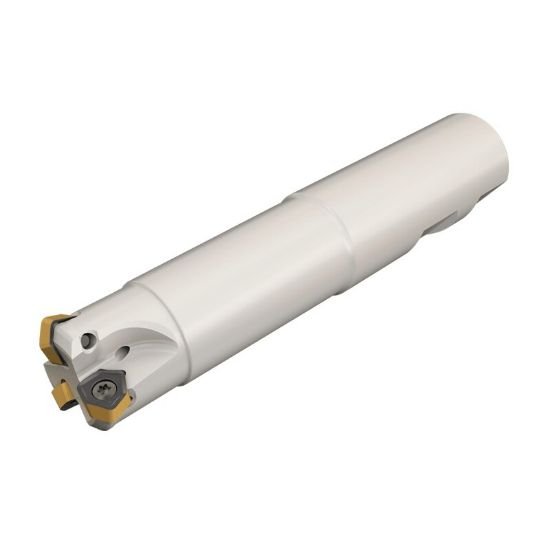

Picture of Iscar MF EWXD0.75-3-2.0W0.75-04 Milling Cutter Feed Mill 0.750 Diameter Weldon 0.750 4.200 OAL 3 Flute

Iscar MF EWXD0.75-3-2.0W0.75-04 Milling Cutter Feed Mill 0.750 Diameter Weldon 0.750 4.200 OAL 3 Flute

Part Number: ISC3106345 ISO: MF EWXD0.75-3-2.0W0.75-04 ANSI:MF EWXD0.75-3-2.0W0.75-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012449
Vendor: Sussex Tool and Supply
$418.56

Description

ISCAR 3106345 Trigon Feed Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 4.2000 106.68MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.4700 11.94MM
Depth Of Cut Max 0.0790
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
