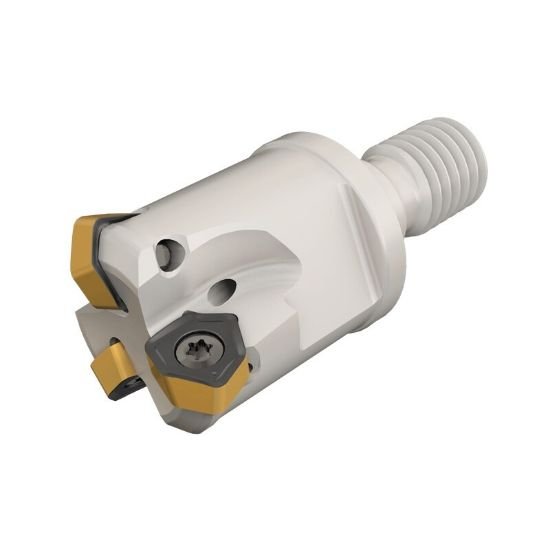

Picture of Iscar MF EWX D20-3-M10-04 Milling Cutter Feed Mill 0.787 Diameter Screw On M10 1.890 OAL 3 Flute

Iscar MF EWX D20-3-M10-04 Milling Cutter Feed Mill 0.787 Diameter Screw On M10 1.890 OAL 3 Flute

Part Number: ISC3106348 ISO: MF EWX D20-3-M10-04 ANSI:MF EWX D20-3-M10-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012452
Vendor: Sussex Tool and Supply
$418.56

Description

ISCAR 3106348 Trigon Feed Mill Thread On SCREWM10 Positive 0.7870 19.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 1.8900 48.01MM
Flutes/Inserts 3
Tool Dia 0.7870 19.99MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.5120 13.00MM
Depth Of Cut Max 0.0790
Cut Dia Max 0.7870 19.99MM
Max Ramp Angle 2.40°
Materials & Finish
Tool Material Steel
