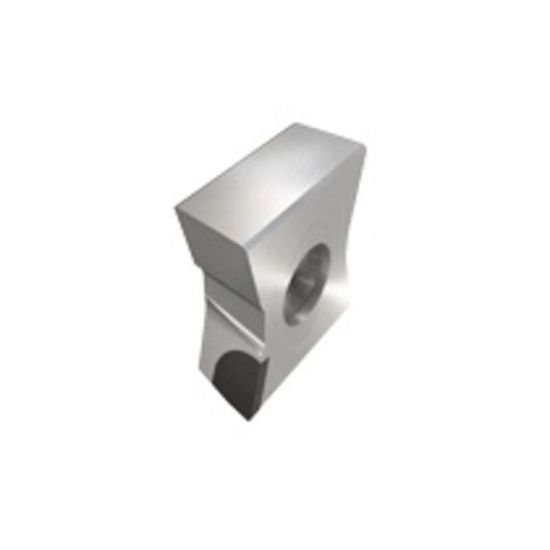

Picture of Iscar LNAR150604PN-R-S ID5 Milling Insert On Edge 0.016 Corner Radius

Iscar LNAR150604PN-R-S ID5 Milling Insert On Edge 0.016 Corner Radius

Part Number: ISC5604757

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1010615
Vendor: Sussex Tool and Supply
$158.00
This product has a minimum quantity of 10
PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.
Products specifications
Attribute name Attribute value
Insert Application Roughing, Semi Finishing
Cutter Type Insert
Depth Of Cut Max 0.1970
Insert Size (IC) 15
Insert Type Negative
Cutting Edge Definition PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.
Insert Style LN
Grade ID5
Insert Or Tool INSERT
Insert Shape Or Cutter Pocket Shape Rectagonal
Shipping State TEXAS
Family Group Tang-Mill
Cutting Edge Material PCD
Insert Fits On Edge
Corner Radius 0.0160 0.41MM
Made In USA No
