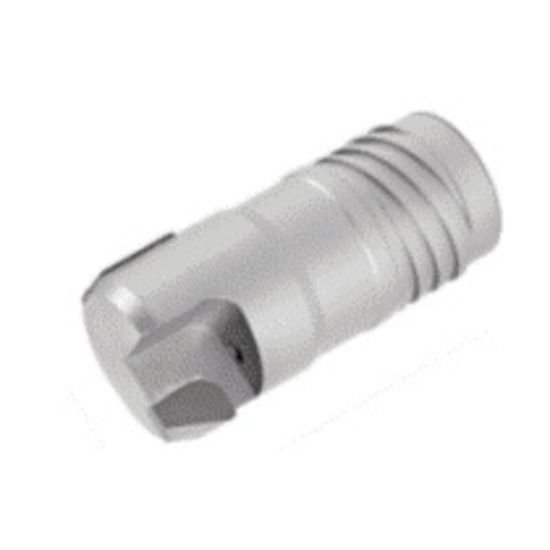

Picture of Iscar IST-E1 .859-.948 NOM 0 0.859" Deep Single Tube Counterbore with Through Hole, External 4 Start Thread and a Brazed Tip (.744-2.559 dia.)

Iscar IST-E1 .859-.948 NOM 0 0.859" Deep Single Tube Counterbore with Through Hole, External 4 Start Thread and a Brazed Tip (.744-2.559 dia.)

Part Number: ISC4880139 ISO: IST-E1 .859-.948 NOM 0
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112742
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 4880139 0.859" Deep Single Tube Counterbore with Through Hole, External 4 Start Thread and a Brazed Tip (.744-2.559 dia.) Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Gun Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Gun Drill Component Brazed Heads
Dimensions & Sizing
Overall Length 2.5590 65.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 1
Tool Dia 0.8594 21.83MM - 55/64
Performance & Capacity
Cut Dia Min 0.8594 21.83MM - 55/64
Cut Dia Max 0.9490 24.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Compatibility & Fit
Connection TS-I5
