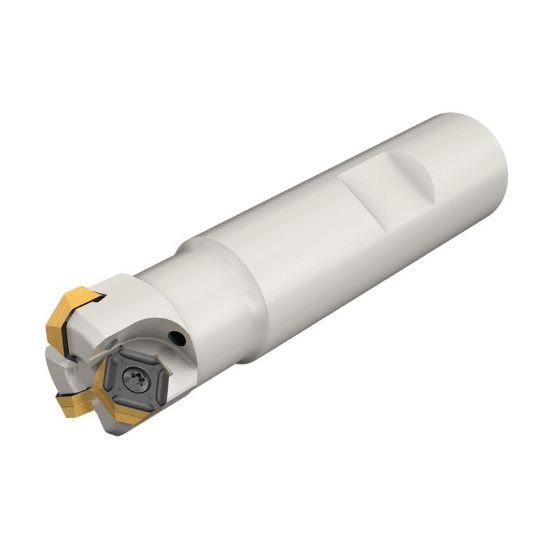

Picture of Iscar IQ845 ESYD1.50-6W1.50-R05 Milling Cutter 50.0° 1.500 Diameter Weldon 1.500 4.000 OAL 6 Flute

Iscar IQ845 ESYD1.50-6W1.50-R05 Milling Cutter 50.0° 1.500 Diameter Weldon 1.500 4.000 OAL 6 Flute

Part Number: ISC3106696 ISO: IQ845 ESYD1.50-6W1.50-R05 ANSI:IQ845 ESYD1.50-6W1.50-R05
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012550
Vendor: Sussex Tool and Supply
$561.60

Description

ISCAR 3106696 Square 50.0°, Chamfer Mill End Mill Weldon 1.5000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type External
Insert Screw 7006316
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 50.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.1020
Cut Dia Max 1.7300 43.94MM
Materials & Finish
Tool Material Steel
