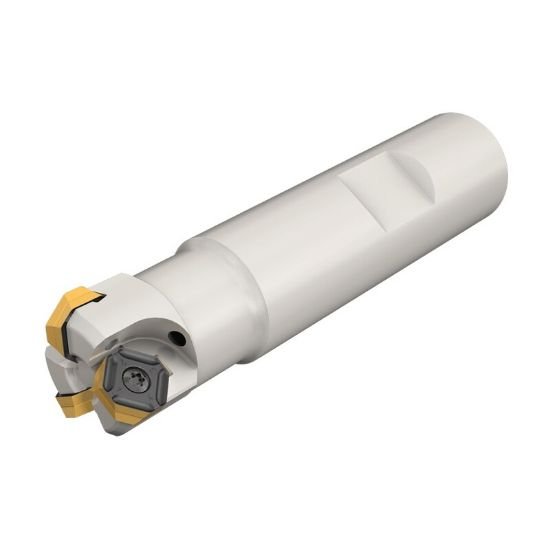

Picture of Iscar IQ845 ESYD1.25-4W1.25-R05 Milling Cutter 50.0° 1.250 Diameter Weldon 1.250 4.000 OAL 4 Flute

Iscar IQ845 ESYD1.25-4W1.25-R05 Milling Cutter 50.0° 1.250 Diameter Weldon 1.250 4.000 OAL 4 Flute

Part Number: ISC3106698 ISO: IQ845 ESYD1.25-4W1.25-R05 ANSI:IQ845 ESYD1.25-4W1.25-R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012552
Vendor: Sussex Tool and Supply
$450.00
ISCAR 3106698 Square 50.0°, Chamfer Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Insert Size Ic 5
Cut Dia Min 1.2500 31.75MM - 1-1/4
Coolant Type External
Depth Of Cut Max 0.1020
Cut Dia Max 1.4800 37.59MM
Insert Screw 7006264
Cutting Edge Angle 50.0°
