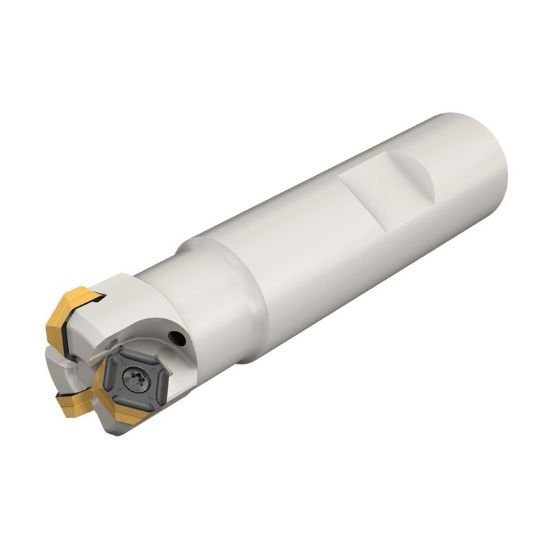

Picture of Iscar IQ845 ESYD1.00-4W1.00-R05 Milling Cutter 50.0° 1.000 Diameter Weldon 1.000 3.500 OAL 4 Flute

Iscar IQ845 ESYD1.00-4W1.00-R05 Milling Cutter 50.0° 1.000 Diameter Weldon 1.000 3.500 OAL 4 Flute

Part Number: ISC3106694 ISO: IQ845 ESYD1.00-4W1.00-R05 ANSI:IQ845 ESYD1.00-4W1.00-R05
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012548
Vendor: Sussex Tool and Supply
$475.20

Description

ISCAR 3106694 Square 50.0°, Chamfer Mill End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type External
Insert Screw 7006316
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 50.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.1020
Cut Dia Max 1.2200 30.99MM
Materials & Finish
Tool Material Steel
