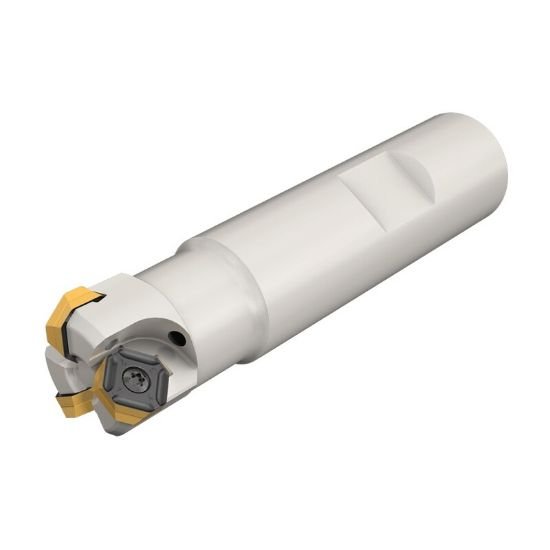

Picture of Iscar IQ845 ESYD0.75-3W0.75-R05 Milling Cutter 50.0° 0.750 Diameter Weldon 0.750 3.500 OAL 3 Flute

Iscar IQ845 ESYD0.75-3W0.75-R05 Milling Cutter 50.0° 0.750 Diameter Weldon 0.750 3.500 OAL 3 Flute

Part Number: ISC3106693 ISO: IQ845 ESYD0.75-3W0.75-R05 ANSI:IQ845 ESYD0.75-3W0.75-R05
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012547
Vendor: Sussex Tool and Supply
$388.80

Description

ISCAR 3106693 Square 50.0°, Chamfer Mill End Mill Weldon 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type External
Insert Screw 7006316
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 50.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1020
Cut Dia Max 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Steel
