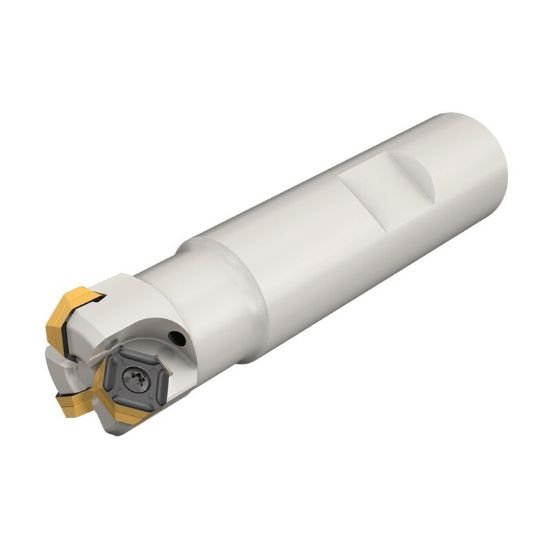

Picture of Iscar IQ845 ESYD0.62-3W0.75-R05 Milling Cutter 50.0° 0.620 Diameter Weldon 0.750 3.250 OAL 3 Flute

Iscar IQ845 ESYD0.62-3W0.75-R05 Milling Cutter 50.0° 0.620 Diameter Weldon 0.750 3.250 OAL 3 Flute

Part Number: ISC3106692 ISO: IQ845 ESYD0.62-3W0.75-R05 ANSI:IQ845 ESYD0.62-3W0.75-R05
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012546
Vendor: Sussex Tool and Supply
$361.92

Description

ISCAR 3106692 Square 50.0°, Chamfer Mill End Mill Weldon 0.7500 Negative 0.6200 15.75MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type External
Insert Screw 7006316
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.6200 15.75MM
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 50.0°
Performance & Capacity
Cut Dia Min 0.6200 15.75MM
Depth Of Cut Max 0.1020
Cut Dia Max 0.8400 21.34MM
Materials & Finish
Tool Material Steel
