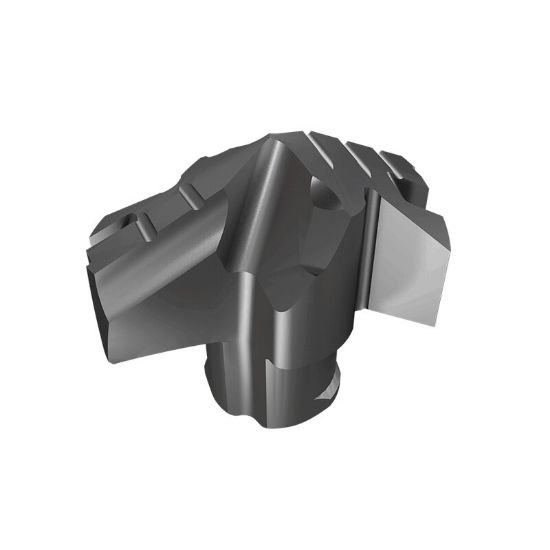

Iscar ICG 0906 IC908 .906" Exchangeable Chip Splitting Drill Heads for Stainless and Alloyed Steel

Part Number: ISC3302967 ISO: ICG 0906 IC908

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1109504
$194.00
ISCAR 3302967 .906" Exchangeable Chip Splitting Drill Heads for Stainless and Alloyed Steel Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Tool Material Carbide
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, <42HRC Steel
Coating TiAlN
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 0.9063 23.02MM - 29/32
Type Of Tool Drill
Grade IC908
Included Angle 130°
Cut Dia Min 0.9062 23.02MM - 29/32
Dia Deep 1.5.0x Dia, 5.0x Dia, 3.0x Dia, 8.0x Dia &12.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Drill Feature Chip Splitting
