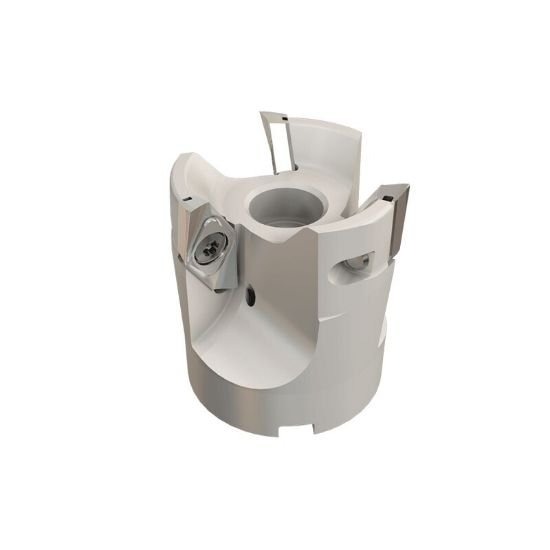

Picture of Iscar HSM90S FAL-D3.0-4-1.0-14 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.250 OAL 4 Flute

Iscar HSM90S FAL-D3.0-4-1.0-14 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.250 OAL 4 Flute

Part Number: ISC3106431 ISO: HSM90S FAL-D3.0-4-1.0-14 ANSI:HSM90S FAL-D3.0-4-1.0-14
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012467
Vendor: Sussex Tool and Supply
$1,036.80

Description

ISCAR 3106431 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006264
Dimensions & Sizing
Overall Length 2.2500 57.15MM
Flutes/Inserts 4
Tool Dia 3.0000 76.20MM
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.5310
Cut Dia Max 3.0000 76.20MM
Materials & Finish
Tool Material Steel
