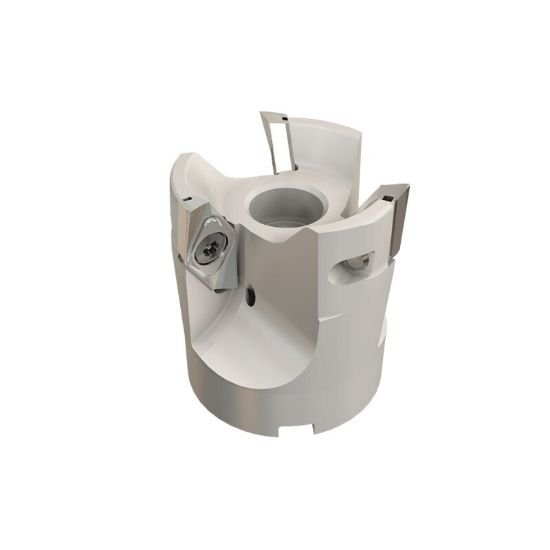

Picture of Iscar HSM90S FAL-D2.5-3-1.0-14 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 3 Flute

Iscar HSM90S FAL-D2.5-3-1.0-14 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 3 Flute

Part Number: ISC3106430 ISO: HSM90S FAL-D2.5-3-1.0-14 ANSI:HSM90S FAL-D2.5-3-1.0-14
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012466
Vendor: Sussex Tool and Supply
$874.56

Description

ISCAR 3106430 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006264
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 3
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.5310
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
