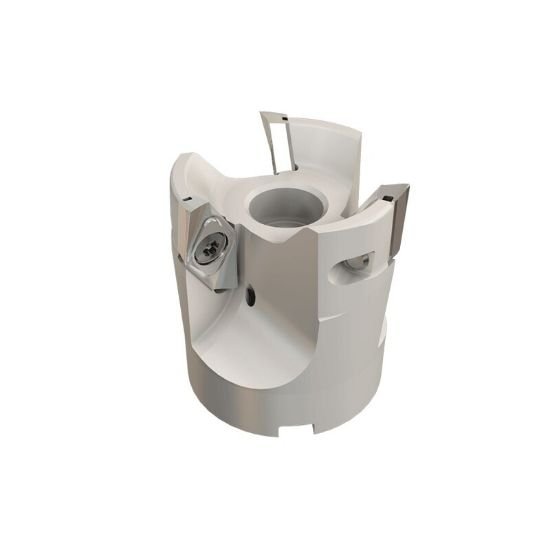

Picture of Iscar HSM90S FAL-D2.0-3-.75-14 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.250 OAL 3 Flute

Iscar HSM90S FAL-D2.0-3-.75-14 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.250 OAL 3 Flute

Part Number: ISC3105783 ISO: HSM90S FAL-D2.0-3-.75-14 ANSI:HSM90S FAL-D2.0-3-.75-14
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012369
Vendor: Sussex Tool and Supply
$774.72

Description

ISCAR 3105783 Parallelogram 90.0°, Face Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 4398576
Dimensions & Sizing
Overall Length 2.2500 57.15MM
Flutes/Inserts 3
Tool Dia 2.0000 50.80MM
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.5310
Cut Dia Max 2.0000 50.80MM
Materials & Finish
Tool Material Steel
