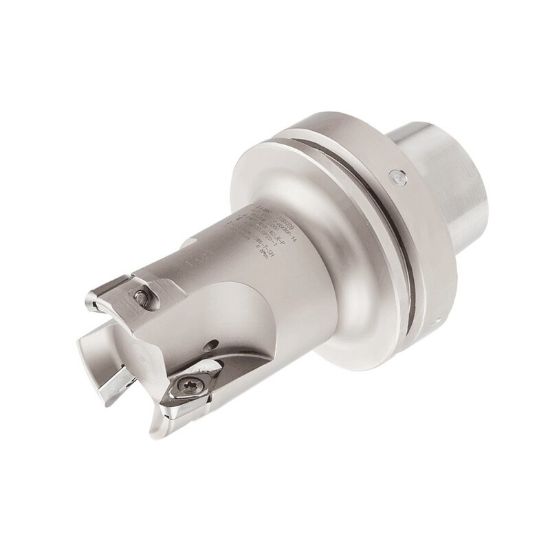

Picture of ISCAR HSM90S EALD2-3-HSK80FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 3.149 5.260 OAL 3 Flute

ISCAR HSM90S EALD2-3-HSK80FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 3.149 5.260 OAL 3 Flute

ANSI: HSM90S EALD2-3-HSK80FM-14

ISO: HSM90S EALD2-3-HSK80FM-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181025
Delivery date: 3-5 days
$2,150.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 90.0°, Quick Change, End Mill
Package Size 1
Sold by Pieces 1
Insert Application Semi Finishing, Roughing
Additional Key Information 4 HSK 63
Shipping State Texas
Additional Key Information 2 Milling Cutter
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Additional Key Information 3 90.0°
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.5310
Machine Side HSK80
Flutes/Inserts 3
Cutter Dia 2.0000 50.80MM
Insert Size Ic 14
Overall Len 5.2600 133.60MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type HSK
Tool Material Steel
Machine Side Connection Size 3.1496 80.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style AL
Max Ramp Angle 8.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7003603
