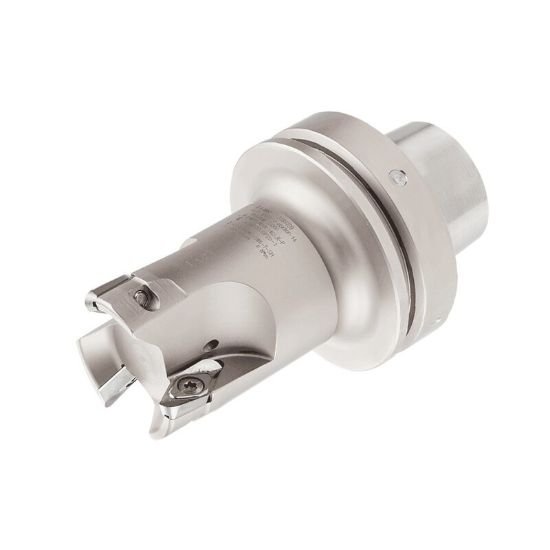

Picture of Iscar HSM90S EALD2-3-HSK63FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 2.480 4.984 OAL 3 Flute

Iscar HSM90S EALD2-3-HSK63FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 2.480 4.984 OAL 3 Flute

Part Number: ISC3181019 ISO: HSM90S EALD2-3-HSK63FM-14 ANSI:HSM90S EALD2-3-HSK63FM-14
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012742
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3181019 Parallelogram 90.0°, End Mill, Quick Change Machine Taper HSK63 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Quick Change
Coolant Thru Thru Coolant
Type Of Tool Machine Taper
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AL
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Vise Type HSK 63
Insert Screw 4390045
Dimensions & Sizing
Overall Length 4.9840 126.59MM
Flutes/Inserts 3
Tool Dia 2.0000 50.80MM
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.5310
Cut Dia Max 2.0000 50.80MM
Max Ramp Angle 8.00°
Materials & Finish
Tool Material Steel
