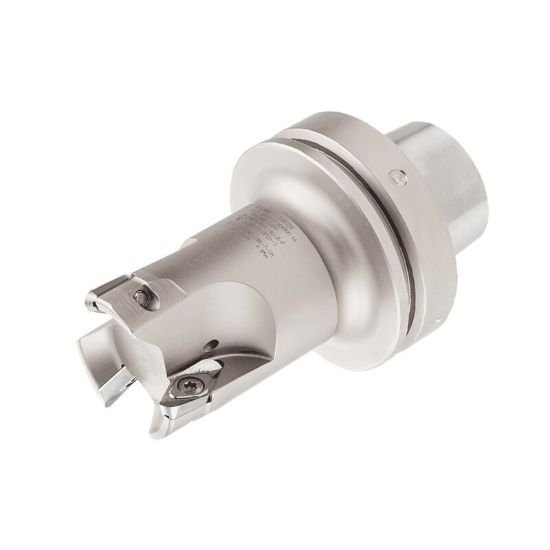

Picture of Iscar HSM90S EALD2-2-HSK80FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 3.149 5.260 OAL 2 Flute

Iscar HSM90S EALD2-2-HSK80FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 3.149 5.260 OAL 2 Flute

Part Number: ISC3106793 ISO: HSM90S EALD2-2-HSK80FM-14 ANSI:HSM90S EALD2-2-HSK80FM-14
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012553
Vendor: Sussex Tool and Supply
$2,179.20

Description

ISCAR 3106793 Parallelogram 90.0°, End Mill Machine Taper HSK80 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Machine Taper
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006993
Dimensions & Sizing
Overall Length 5.2600 133.60MM
Flutes/Inserts 2
Tool Dia 2.0000 50.80MM
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.5310
Cut Dia Max 2.0000 50.80MM
Max Ramp Angle 8.00°
Materials & Finish
Tool Material Steel
