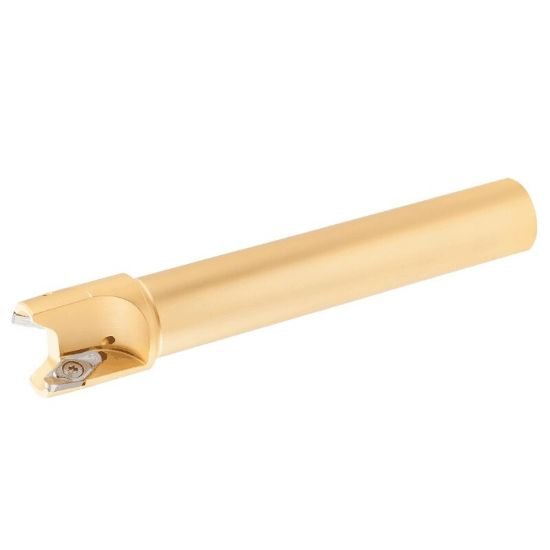

Picture of Iscar HSM90S EAL-D150-2-C125-14 Milling Cutter 90.0° 1.500 Diameter Round 1.250 9.000 OAL 2 Flute

Iscar HSM90S EAL-D150-2-C125-14 Milling Cutter 90.0° 1.500 Diameter Round 1.250 9.000 OAL 2 Flute

Part Number: ISC3106433 ISO: HSM90S EAL-D150-2-C125-14 ANSI:HSM90S EAL-D150-2-C125-14
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012468
Vendor: Sussex Tool and Supply
$799.68

Description

ISCAR 3106433 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006097
Dimensions & Sizing
Overall Length 9.0000 228.60MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5310
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 10.00°
Materials & Finish
Tool Material Steel
