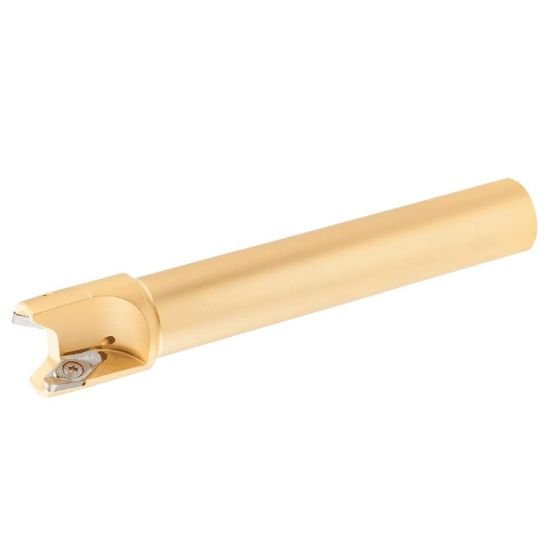

Picture of Iscar HSM90S EAL-D125-2-C125-14 Milling Cutter 90.0° 1.250 Diameter Face Mill 1.250 8.000 OAL 2 Flute

Iscar HSM90S EAL-D125-2-C125-14 Milling Cutter 90.0° 1.250 Diameter Face Mill 1.250 8.000 OAL 2 Flute

Part Number: ISC3181228 ISO: HSM90S EAL-D125-2-C125-14 ANSI:HSM90S EAL-D125-2-C125-14
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012787
Vendor: Sussex Tool and Supply
$755.52

Description

ISCAR 3181228 Parallelogram 90.0°, End Mill SHELL1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AL
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000216
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 14
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.5310
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 10.00°
Materials & Finish
Tool Material Steel
