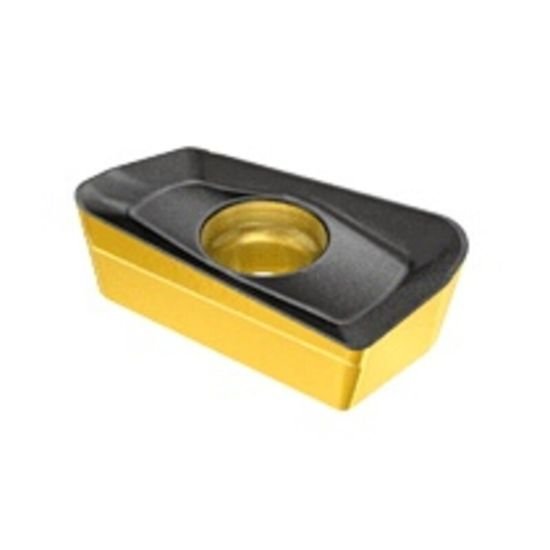

Picture of Iscar HPANKT707PN-R IC5400 Milling Insert Paralelagram 0.020 Corner Radius TiCN + Al2O3 + TiN

Iscar HPANKT707PN-R IC5400 Milling Insert Paralelagram 0.020 Corner Radius TiCN + Al2O3 + TiN

Part Number: ISC5606670 ISO: HPANKT707PN-R IC5400 ANSI:HPANKT707PN-R IC5400
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1010531
Vendor: Sussex Tool and Supply
$18.48
This product has a minimum quantity of 10

Description

ISCAR 5606670 Parallelogram Insert Positive TiCN + Al2O3 + TiN A tough substrate with MTCVD and alpha alumina coating. Recommended for milling steel at high cutting speed and for parting stainless steel.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 7
Geometry & Angles
Corner Radius 0.0200 0.51MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Depth Of Cut Max 0.2950
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC5400
Compatibility & Fit
Insert Fits Parallelogram
