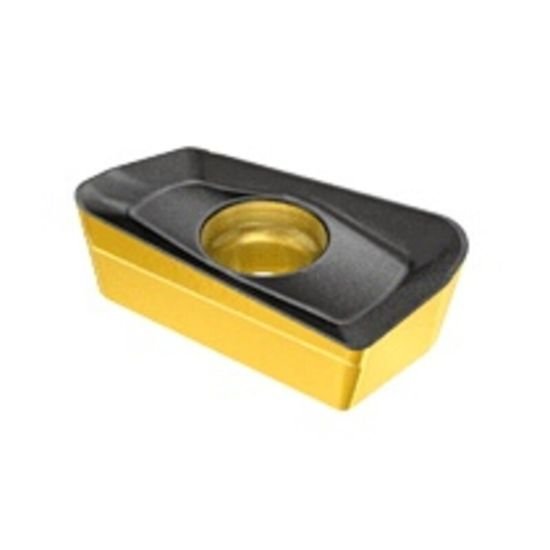

Picture of Iscar HPANKT0702PNTR DT7150 Milling Insert Paralelagram 0.020 Corner Radius Al2O3 + TiAlN

Iscar HPANKT0702PNTR DT7150 Milling Insert Paralelagram 0.020 Corner Radius Al2O3 + TiAlN

Part Number: ISC5605415 ISO: HPANKT0702PNTR DT7150 ANSI:HPANKT0702PNTR DT7150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1010523
Vendor: Sussex Tool and Supply
$14.65
This product has a minimum quantity of 10
ISCAR 5605415 Parallelogram Insert Positive Al2O3 + TiAlN A tough substrate with a dual MTCVD and PVD coating. Recommended for medium to high cutting speeds for machining of both grey and nodularcast iron. Features high wear and chipping resistance.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Graphite, Gray Iron, Ductile Iron, >50HRC Steel
Coating Al2O3 + TiAlN
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Corner Radius 0.0200 0.51MM
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Grade DT7150
Insert Type Positive
Insert Size Ic 7
Insert Fits Parallelogram
Depth Of Cut Max 0.2950
